November 16, 2006

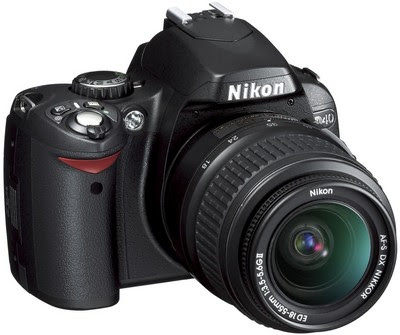

Nikon Digital SLR Camera D40 Specifications

Type of Camera: Single-lens reflex digital camera
Effective Pixels: 6.1 million
Image Sensor: RGB CCD, 23.7 x 15.6 mm; total pixels: 6.24 million, Nikon DX format
Image Size (pixels): 3,008 x 2,000 [L], 2,256 x 1,496 [M], 1,504 x 1,000 [S]
ISO Sensitivity: 200 to 1,600 in steps of 1 EV with additional setting one step over 1600
Storage Media: SD memory card, SDHC compliant
Storage System: Compressed NEF (RAW): 12-bit compression, JPEG: JPEG baseline compliant
File System: Exif 2.21, Compliant DCF 2.0 and DPOF
White Balance: Auto (TTL white-balance with 420-pixel RGB sensor), six manual modes with fine-tuning and preset white balance
LCD Monitor: 2.5-in., 230,000-dot, low-temperature polysilicon TFT LCD with brightness adjustment
Playback Function: 1 frame; Thumbnail (4 or 9 segments); Magnifying playback; Slide show; Histogram indication; Highlight point display; Auto image rotation
Delete Function: Card format, All frames delete, Selected frames delete
Video Output: NTSC or PAL
Interface: USB 2.0 (High-speed): Mass Storage and PTP selectable
Text Input: Up to 36 characters of alphanumeric text input available with LCD monitor and multi selector; stored in Exif header
Compatible Lenses*1: Nikon F mount with AF coupling and AF contacts Type G or D AF Nikkor 1) AF-S, AF-I: All functions supported,
2) Other Type G or D AF Nikkor: All functions supported except autofocus,
3) PC Micro-Nikkor 85mm f/2.8D: Can only be used in mode M; all other functions supported except autofocus,
4) Other AF Nikkor*2/AI-P Nikkor: All functions supported except autofocus and 3D Colour Matrix Metering II,
5): Non-CPU: Can be used in mode M, but exposure meter does not function; electronic range finder can be used if maximum aperture is f/5.6 or faster
*1. IX Nikkor lenses can not be used
*2. Excluding lenses for F3AF
Picture Angle: Equivalent in 35mm [135] format is approx. 1.5 times lens focal length
Viewfinder: Fixed-eyelevel penta-Dach mirror type; built-in diopter adjustment (-1.7 to +0.5m-1)
Eyepoint: 18mm (-1.0 m-1)
Focusing Screen: Type B BriteView Clear Matte screen Mark V with superimposed focus brackets
Viewfinder Frame: Coverage Approx. 95% (vertical/horizontal)
Viewfinder Magnification: Approx. 0.8x with 50mm lens at infinity; -1.0 m-1
Viewfinder Information: Focus indications, AE/FV lock indicator, Shutter speed, Aperture value, Exposure/Exposure compensation indicator, Exposure mode, Flash output level compensation, Exposure compensation, Number of remaining exposures, Flash-ready indicator
Autofocus: TTL phase detection by Nikon Multi-CAM530 autofocus module with AF-assist (range approximately 0.5-3.0m/1ft. 8in.-9ft. 10in.); Detection range: -1 to +19 EV (ISO 100 at 20°C/68°F)
Lens Servo: 1) Autofocus (AF): Instant single-servo AF (AF-S); continuous servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking automatically activated according to subject status, 2) Manual focus (M)
Focus Area: Can be selected from 3 focus areas
AF Area: Modes 1) Single Area AF, 2) Dynamic Area AF, 3) Dynamic Area AF with Closest Subject Priority
Focus Lock Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button
Exposure Metering System TTL full-aperture exposure metering system 1) 3D Colour Matrix Metering II (type G and D lenses); Colour Matrix Metering II (other CPU lenses); metering performed by 420-segment RGB sensor 2) Centre-weighted: Weight of 75% given to 8mm circle in centre of frame 3) Spot: Meters 3.5mm circle (about 2.5% of frame) centred on active focus area
Exposure Metering Range 1) 0 to 20 EV (3D Colour Matrix or centre-weighted metering), 2) 2 to 20 EV (spot metering)
Exposure Modes Digital Vari-program (Auto, Auto [Flash Off], Portrait, Landscape, Child, Sports, Close Up, Night Portrait), Programmed Auto (P) with flexible program; Shutter-Priority Auto (S); Aperture Priority Auto (A); Manual (M) Exposure Compensation ±5 EV in increments of 1/3 EV
Exposure Lock Exposure locked at detected value with AE-L/AF-L button Shooting Modes 1) Single frame shooting mode, 2) Continuous shooting mode: approx. 2.5 frames per second*, 3) Self-timer mode, 4) Delayed remote mode: 2 s. delay, 5) Quick-response remote mode *Approx. 1.7 frames per second with Noise reduction turned on and approx. 1 frame per second with ISO HI 1
Shutter Combined mechanical and CCD electronic shutter, 30 to 1/4000 s. in steps of 1/3, bulb Sync Contact X-contact only; flash synchronization at up to 1/500 s.
Flash Control 1) TTL: TTL flash control by 420-segment RGB sensor. i-TTL balanced fill-flash for digital SLR and standard i-TTL fill-flash for digital SLR available when CPU lens is used with built-in flash, SB-800, SB-600, and SB-400, 2) Auto aperture: Available with SB-800 with CPU lens, 3) Non-TTL Auto: Available with Speedlights such as SB-800, 80DX, 28DX, 28, 27, and 22s , 4) Range-priority manual available with SB-800
Flash Sync Modes AUTO, Portrait, Child, Close Up: Auto, auto with red-eye reduction; fill-flash and red-eye reduction available with optional Speedlight Night portrait mode: Auto, auto slow sync, auto slow sync with red-eye reduction; slow sync and slow sync with red-eye reduction available with optional Speedlight Landscape, Sport mode: Fill-flash and red-eye reduction available with optional Speedlight P, A: Fill flash, rear-curtain with slow sync, slow sync, slow sync with red-eye reduction, red-eye reduction S, M: Fill flash, rear-curtain sync, red-eye reduction
Built-in Flash AUTO, Portrait, Child, Close Up, Night Portrait mode: Auto flash with auto pop-up P/S/A/M: Manual pop-up with button release Guide number (ISO 200/ISO 100, m [ft.]): approx.17 [55]/12 [39] (manual full 18 [59]/13 [42])
Flash Compensation -3 to +1 EV in increments of 1/3 EV
Accessory Shoe Standard ISO hot-shoe contact with sync, signal, and ground contacts and safety lock
Self-timer Electronically controlled timer with duration of 2, 5, 10 or 20 s.
Remote Control Via Wireless Remote Control ML-L3 (optional)
Power Source One Rechargeable Li-ion Battery EN-EL9; charging voltage (MH-23 quick charger): 7.4V DC, AC Adapter EH-5 (available separately; requires optional AC Adapter Connector EP-5)
Tripod Socket 1/4 in. (ISO1222)
Body Colour Black (Silver version is also available depending on country or area.)
Dimensions (W x D x H) Approx. 126 x 64 x 94mm (5.0 x 2.5 x 3.7 in.)
Weight Approx. 475g (1lb. 1oz.) without battery, memory card or body cap
Supplied Accessories* Rechargeable Li-ion Battery EN-EL9, Quick Charger MH-23, USB Cable UC-E4, PictureProject, Rubber Eyecup DK-16, Camera Strap, Body Cap BF-1A, Eyepiece Cap DK-5, Accessory Shoe Cap BS-1
Optional Accessories Wireless Remote Control ML-L3, Capture NX, Camera Control Pro, AC Adapter Connector EP-5, AC Adapter EH-5, Video Cable EG-D100, Semi Soft-Case CF-DC1, Speedlight SB-800/600/Sb-400/R1C1
*Supplied accessories may differ depending on country or area.
Specifications and equipment are subject to change without any notice or obligation on the part of the manufacturer. November 2006 ©2006 Nikon Corporation
