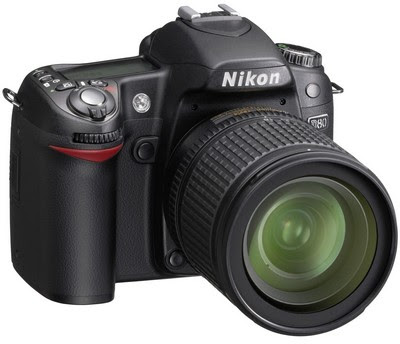

Type of Camera Single-lens reflex digital camera Effective Pixels 10.2 million Image Sensor RGB CCD, 23.6 x 15.8mm; total pixels: 10.75 million, Nikon DX format Image Size (pixels) 3,872 x 2,592 [L], 2,896 x 1,944 [M], 1,936 x 1,296 [S] ISO Sensitivity (Recommended Exposure Index) 100 to 1600 (ISO equivalent) in steps of 1/3 EV, plus HI-0.3, HI-0.7 and HI-1 Storage Media SD memory card (SDHC™ compatible) Storage System Compressed NEF (RAW): 12-bit compression, JPEG: JPEG baseline-compliant File System Exif 2.21, Compliant DCF 2.0 and DPOF White Balance Auto (TTL white balance with 420-pixel RGB sensor), six manual modes with fine-tuning, colour temperature setting (Kelvin), preset white balance; white balance bracketing also available LCD Monitor 2.5-in., 230,000-dot, low-temperature polysilicon TFT LCD with brightness adjustment, allows up to 170-degree viewing angle. Playback Function 1) Full frame 2) Thumbnail (4 or 9 segments) 3) Zoom 4) Slideshow (Standard or Pictmotion) 5) RGB histogram indication 6) Shooting data 7) Highlight point display 8) Auto image rotation Delete Function Card format, all photographs delete, selected photographs delete Video Output Can be selected from NTSC and PAL Interface USB 2.0 (Hi-speed) (mini-B connector); SD card slot: supports firmware updates via SD cards Text Input Up to 36 characters of alphanumeric text input available with LCD monitor and multi-selector; stored in Exif header Compatible Lenses Nikon F mount (with AF coupling and AF contacts) Picture Angle Equivalent in 35mm  format is approx. 1.5 times lens focal length Viewfinder Fixed eye-level pentaprism; built-in diopter adjustment (-2.0 to +1.0m-1) Eyepoint 19.5mm (-1.0m-1) Focusing Screen Type-B BriteView Clear Matte screen Mark II with superimposed focus brackets and On-Demand grid lines Viewfinder Frame Coverage Approx. 95% (vertical & horizontal) Viewfinder Magnification Approx. 0.94x with 50mm lens at infinity; -1.0m-1 Viewfinder Information Focus indications, Metering system, AE/FV lock indicator, Flash sync indicator, Shutter speed, Aperture value, Exposure/Exposure compensation indicator, ISO sensitivity, Exposure mode, Flash output level compensation, Exposure compensation, Number of remaining exposures Autofocus TTL phase detection by Nikon Multi-CAM 1000 autofocus module with AF-assist illuminator (approx. 0.5m to 3.0m). Detection range: EV -1 to +19 (ISO 100 equivalent, at normal temperature: 20°C/68°F) Lens Servo Instant single-servo (AF-S); continuous-servo (AF-C); auto AF-S/AF-C selection (AF-A); manual (M); predictive focus tracking automatically activated according to subject status in continuous-servo AF Focus Areas 11 areas; any single area can be selected; center focus area can be switched from normal to wide-frame AF Area Modes 1) Single Area AF: Focuses only on subjects in the selected area. Selection can be made from any one of the eleven AF spot sensors. 2) Dynamic Area AF: Focuses on subject in the selected area, but follows the subject if it moves from its original position, shifting instantly and automatically to the focus area into which the subject has moved. 3) Auto-area AF: measures all 11 focus areas, automatically determines which of them are on the primary subject, and activates only those areas. Focus Lock Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button Exposure Metering System Three-mode through-the-lens (TTL) exposure metering 1) 3D Colour Matrix Metering II (type G and D lenses); colour matrix metering II (other CPU lenses); metering performed by 420-segment RGB sensor 2) Centre-weighted: Weight of 75% given to 6, 8, or 10mm dia. circle in center of frame 3) Spot: Meters 3.5mm dia. circle (about 2.5% of frame) centered on active focus area (on center focus area when non-CPU lens is used, or if Auto-area AF is selected) Exposure Metering Range (ISO 100, f/1.4 lens, 20°C/68°F) 1) EV 0 to 20 (3D Colour Matrix or center-weighted metering) 2) EV 2 to 20 (spot metering) Exposure Metre Coupling CPU coupling Exposure Modes Digital Vari-Program (Auto, Portrait, Landscape, Macro Close up, Sports, Night Landscape, Night Portrait), Programmed Auto [P] with flexible program; Shutter-Priority Auto [S]; Aperture Priority Auto [A]; Manual [M] Exposure Compensation ±5 EV in increments of 1/3 or 1/2 EV Exposure Lock Luminosity locked at detected value with AE-L/AF-L button Auto Exposure and Flash Bracketing 2 to 3 exposures in increments between 1/3 to 2.0 EV Shooting Modes 1) Single frame shooting mode 2) Continuous shooting mode: approx. 3 frames per second 3) Self-timer 4) Delayed remote mode 5) Quick-response remote mode Shutter Electronically-controlled vertical-travel focal plane shutter, 30 to 1/4000 sec. in steps of 1/3 or 1/2 EV, bulb Sync Contact X-contact only; flash synchronization at up to 1/200 sec. Flash Control 1) TTL: TTL flash control by 420-pixel RGB sensor Built-in Flash, SB-800, SB-600: i-TTL balanced fill-flash (except when using spot metering exposure mode) Built-in Flash, SB-800, SB-600: standard i-TTL flash (when using spot metering) 2) Auto aperture: Available with SB-800 with CPU lens 3) Non-TTL Auto: Available with Speedlights such as SB-800, 80DX, 28DX, 28, 27, and 22s 4) Range-priority manual; available with SB-800 Flash Sync Mode 1) Auto 2) Fill-in flash 3) Red-eye Reduction, 4) Red-eye Reduction with Slow Sync, 5) Slow Sync, 6) Rear-curtain Sync 7) Off Built-in Flash (Auto, Portrait, Macro Close up, Night Portrait) auto flash with auto pop-up; Manual pop-up with button release Guide number (ISO 100, m/ft.): approx. 13/42 Flash Compensation -3 to +1 EV in increments of 1/3 or 1/2 EV Accessory Shoe Standard ISO hot-shoe contact with safety lock provided Self-timer Electronically controlled timer with 2 to 20 seconds duration (2, 5, 10, and 20 second selectable) Depth of Field Preview When CPU lens is attached, lens aperture can be stopped down to value selected by user (A and M modes) or value selected by camera (P and S modes) Remote Control Via Remote Cord MC-DC1 (optional) or Wireless Remote Control ML-L3 (optional) Power Source One Rechargeable Li-ion Battery EN-EL3e, MB-D80 battery pack (optional) with one or two rechargeable Nikon EN-EL3e Li-ion batteries or six AA alkaline (LR6), Ni-MH (HR6), lithium (FR6) batteries, or nickel-manganese (ZR6) AA batteries, AC Adapter EH-5 (optional) Tripod Socket 1/4 in. (ISO 1222) Dimensions (W x H x D) Approx. 132 x 103 x 77mm (5.2 x 4.1 x 3.0 in.) Weight Approx. 585g (1 lb. 5 oz.) without battery, memory card, body cap, or monitor cover Supplied Accessories* Rechargeable Li-ion Battery EN-EL3e, Quick Charger MH-18a, Audio Video Cable EG-D2, USB Cable UC-E4, Strap, Body cap, Eyepiece Cap DK-5, Rubber Eyecup DK-21, LCD monitor cover BM-7, Accessory shoe cover, PictureProject CD-ROM Optional Accessories Multi-Power Battery Pack MB-D80, Magnifying Eyepiece DK-21M, AC Adapter EH-5, Wireless Remote Control ML-L3, Remote Cord MC-DC1, Speedlight SB-800/SB-600/R200, Capture NX, Camera Control Pro * Supplied accessories may differ in each country or area.
Specifications and equipment are subject to change without any notice or obligation on the part of the manufacturer. August 2006 (c) Nikon Corporation
